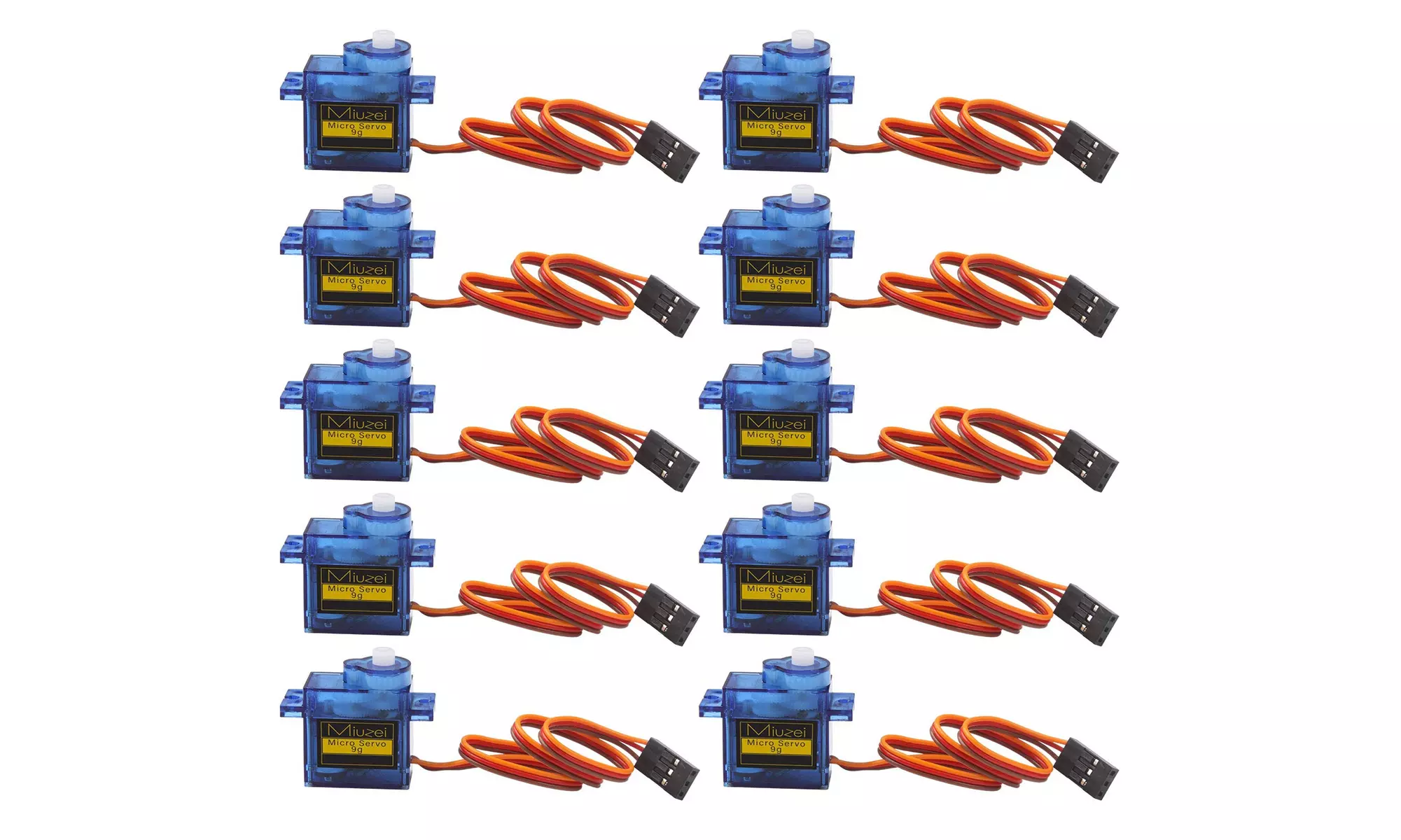

10 pcs SG90 9G Micro Servo Motor Kit for RC Robot Arm Helicopter Airplane

Miuzei SG90 9G Micro Servo Motor Kit for RC Robot Arm Helicopter Airplane Remote Control

Product Specification
Mode Number：MS18

1:Apply Environmental Condition：
Operating Temperature Range:-10℃～50℃
Operating Voltage Range:4.8V～6.0V

2. Appearance Inspection：
Dimensions:L23xW12.2xH29mm

3. Electrical Specification (Function of the Performance)：
3.1 Operating speed (at no load) 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
3.2 Running current (at no load) 400±30mA (4.8V ) 500±30mA(6V)
3.3 Stall torque (at locked) 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
3.4 Stall current (at locked) 1300±40mA (4.8V ) 1600±50mA(6v)
3.5 Idle current (at stopped) 6±1mA (4.8V ) 6±1mA(6v)
3.6 Running life(at no load) >350000 Turns(4.8V ) >320000 Turns(4.8V )
3.7 Temperature drift(at 25°C) ≤5°C(4.8V) ≤7°C(6V)

4. Mechanical Specification：
Limit angle:200°± 1°
Weight:9 ± 1 g
Connector wire gauge:＃28 PVC
Connector wire length:250 ± 5 mm
Spline:21T
Horn type:Cross,star and bar-type
Excessive play:≤0.5°

5. Control Specification：
Control system:Change the pulse width
Amplifier type:Analog controller
Operating trave:l120°±10° (900→2100 μsec)
Left&Right travelling Angle deviation:≤ 6°
Centering deviation:≤ 1°
Neutral position:1500 μsec
Dead band width:7 μsec
Rotating direction:Counter Clockwise (900→2100μsec)
Pulse width range:900→2100 μsec
Maximum travel:About 120° (900→2100 μsec)

• Application Fields: remote control helicopters, micro robot, robot arm and boats.
• ALL kind of R/C Toys and Arduino experiments
• Interface Type: compatible with JR & Futaba interface.
• No Load Running Speed: 0.09, 0.01 sec/60 Degrees at 4.8V Rotary Angle: 120 Degrees
• Stall Torque (4.8V): 17.5oz /in (1kg/cm).Dead band width: 7usec
• Operating voltage: 4.8V - 6.0V

10 pcs SG90 9G Micro Servo Motor Kit for RC Robot Arm Helicopter Airplane

• Toy and Game Assembly Required: Yes
• Recommended For Ages: 12 years and up
• Toys Age Range: 12 years and up
• Toy and Game Battery Requirements: N/A
• Toy and Game Materials/Fabric: SG90 9G Micro Servo Motor Kit
• Included Items: 10 pcs SG90 9G Micro Servo Motor Kit
• Dimensions: 1.8 inches (H) x 3.5 inches (W) x 5.0 inches (L)
• Weight: 5.6 ounces

• Made in United States
