Bluetooth USB Handheld ECG Machine EKG Heart Rate Monitor Electrocardiograph,FDA

Introduction：
PM10 Portable ECG Monitor is a device for checking ECG,which is applicable for family and individual user, it is a good helper to early prevent from cardiovascular diseases and reduce risks.
Intelligent design, achieves remote health management by using with mobile application, it can automatically start measurement, store ECG, upload data, download health conclusion and obtain doctor advice at the first moment.

Application Object：
It is applicable for patients with different kinds of chronic diseases, especially coronary heart disease, diabetes, hypertension, myocarditis, obesity, chest pain, palpitations and dyspnea.


Features：
1.77" color TFT-LCD.
Quickly to check ECG once finger touching, convenient to operate.
Accurate conclusion can be obtained immediately after measuring.
The built-in rechargeable lithium battery can continuously record for up to 500 cases in full charging.
Bluetooth transmission.
ECG data can be saved to CLOUD Platform permanently, convenient to check and analyze.
Historical data can be printed at any time, convenient to diagnose.


Performance：
Calibration voltage：1mV±5%
Standard sensitivity：10mm/mV±5%
Amplitude frequency characteristic： standard: 10Hz，1Hz～20Hz；(+0.4dB，-3dB)
Noise level：≤30μV
CMRR：≥60dB
Scanning speed：25mm/s±5%
Sampling rate：250 dots/s
HR measurement range：30bpm～300bpm，error： ±1bpm or 1%
Type of protection against electric shock: Internal power device
Degree of protection against electric shock: Type BF applied part
Degree of waterproof: IP22

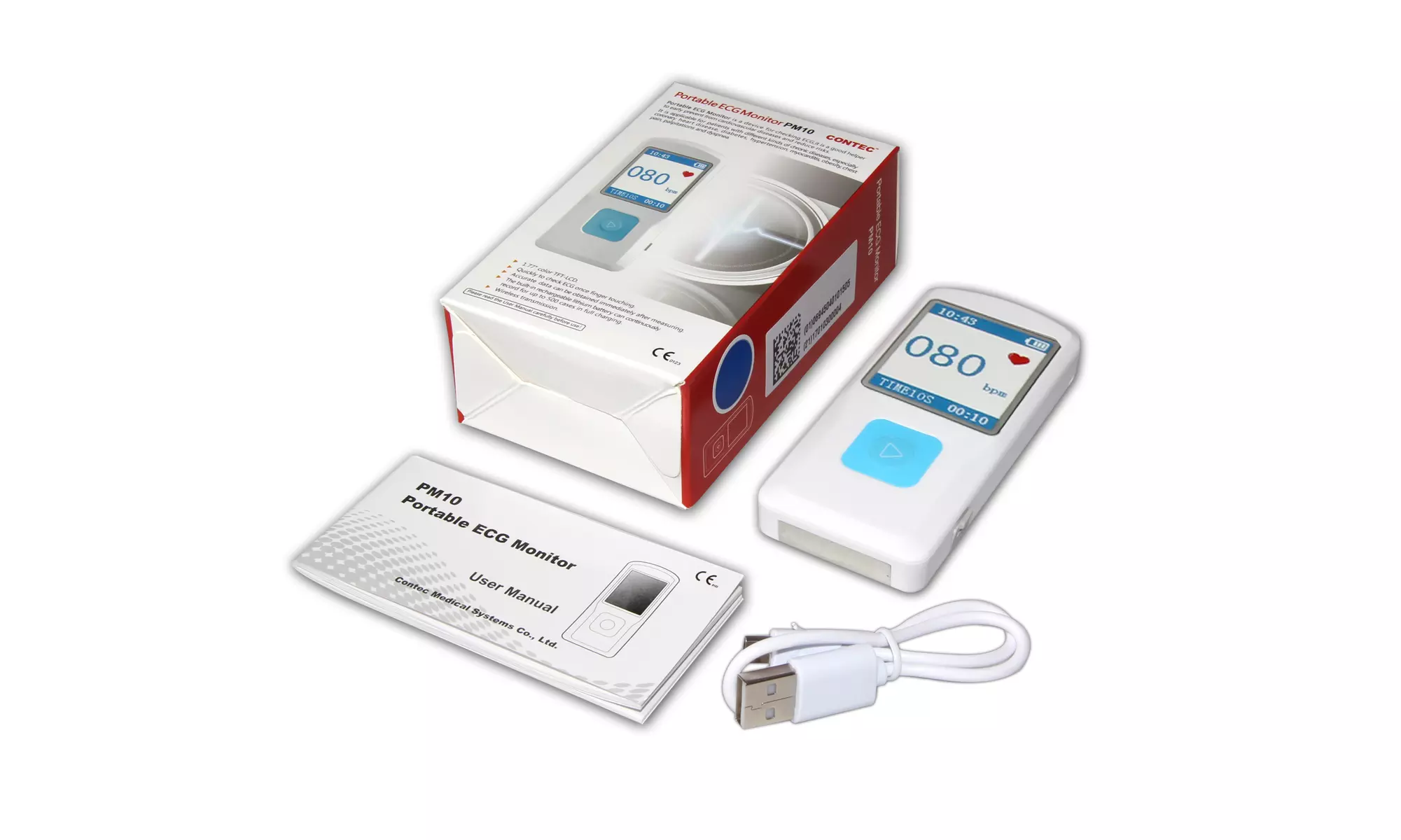

Accessories：
1.Power cord, 1
2.User manual, 1

Physical Characteristic：
Dimension: 100mm(L)×45mm(W)×15mm(H)
Weight: 60g

Bluetooth USB Handheld ECG Machine EKG Heart Rate Monitor Electrocardiograph,FDA White 100mm(L)×45mm(W)×15mm(H)

• Power Type: Rechargeable Battery
• Condition: New
• Dimensions: 15.0 millimeters (H) x 45.0 millimeters (W) x 100.0 millimeters (L)
• Weight: 60.0 grams

• Made in China
