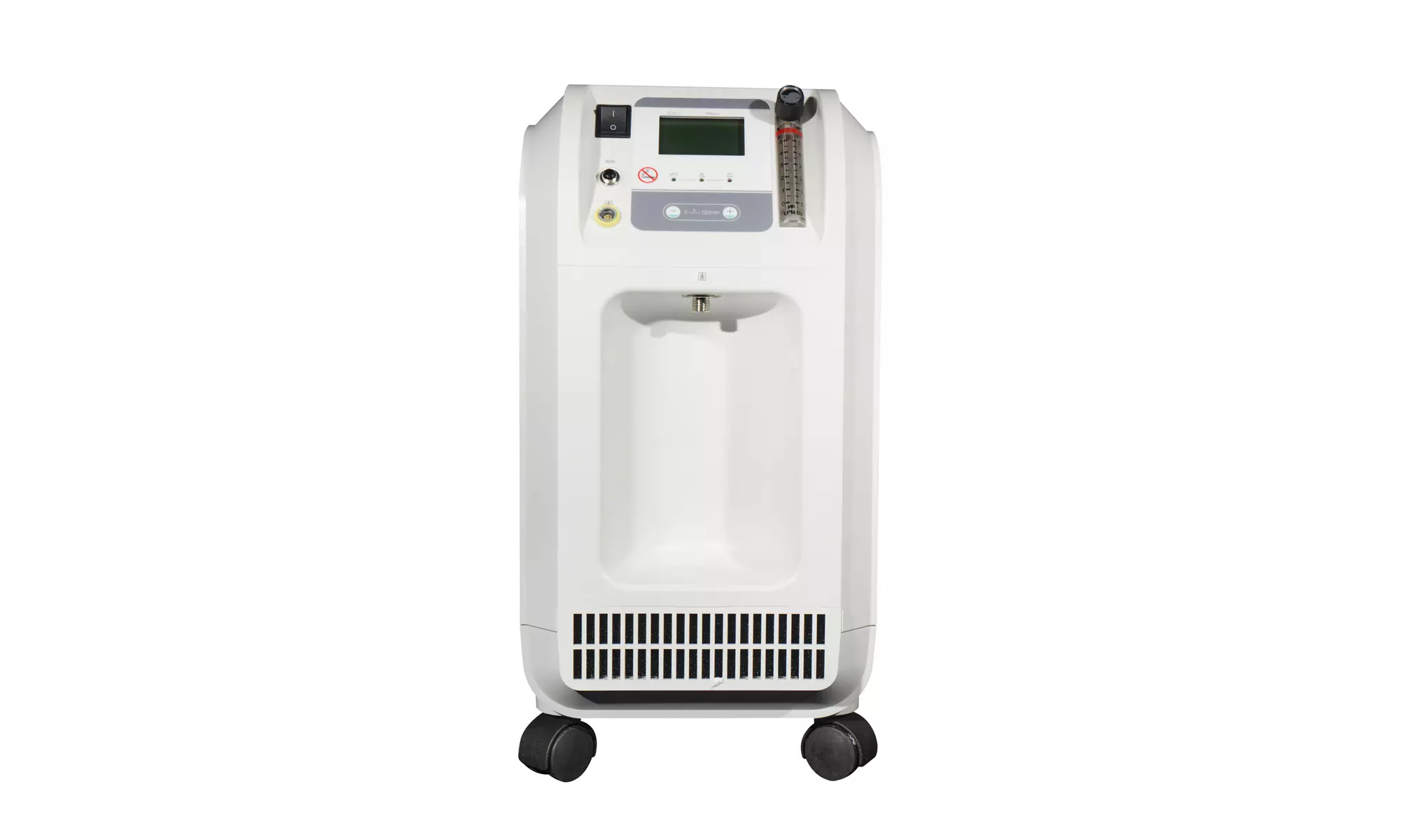

CONTEC oxygen portable generator home oxygen concentrator FDA

Introduction:

Oxygen Concentrator adopts pressure swing absorbers(PSA) to directly concentrate the medical oxygen with high concentration from the air.The machine is cooperated with such diseases as cardiovascular disease, cerebrovascular disease, respiratory disease, altitude response and altitude sickness, geriatric disease, pediatric respiratory tract infection, nocturnal hypoxemia and gas poisoning anoxia in treatment. It is widely used for students, white-collar workers, athletes, the elderly, pregnant women, the futus for mental and physical recovery, assistant therapy and physiological health.



Major Features:

1.With turning truckle, easy to move
2.Built-in filter to sieve the impurity
3.Oxygen concentration status indicator
4.Function of accumulating time
5.Function of timing shutdown
6.Alarm for power failure
7.Alarm for high/low pressure protection
8.Alarm for low flow rate
9.With working indicator
10.Measure SpO2 and pulse rate



Main performance:

1.Electrical Requirements:AC220V±10%,50Hz±1Hz
2.Flow Range:0.5-3L/min
3.Oxygen Outlet Concentration Levels:(reach the stated oxygen concentration level after turning on the machine for thirty minutes):it`s 93%±3% when the flow rate is 0.5-3L'min
4.SpO2 Measuring Range: 0%~100%
5.Accuracy: 70%~100%: ±2%,Below 70% unspecified
6.PR Measuring Range: 30bpm~250bpm
7.Accuracy: ±2bpm or ±2% (select larger)
8.Outlet pressure:20kPa~50kPa
9.Sound Level:≤55dB(A)
10.Average Power Consumption:330VA

Accessories:

1.A humidifier bottle
2.An user manual
3.A power cord
4.A nasal oxygen cannula
5.A SpO2 probe

Physical Identity:

Dimension: 508(L) × 260(W) × 530(H) mm
Weight: 21Kg

CONTEC oxygen portable generator home oxygen concentrator FDA

• Dimensions: 53.0 centimeters (H) x 26.0 centimeters (W) x 51.0 centimeters (L)
• Weight: 21.0 kilograms

• Made in China
