iMounTEK 100 Piece Heat Shrink Butt Connector, Solder Seal Wire Sleeve Connector

Sold by iMountek

Select Option
Accidental Damage Protection

Highlights

  • Electrical Type: Outlets & Accessories

Product Details

iMounTEK 100 Piece Heat Shrink Butt Connector, Solder Seal Wire Sleeve Connector

These IP67 waterproof wire connectors provide a high quality, sealed solder connection that takes the guesswork out of soldering. Heat shrink solder connectors do not decrease in length, creating better insulation alongside with most reliable wire support and pressure relief. Wire terminal connectors, ideal for marine, trailers, cars and other demanding electrical applications.

FEATURES:

Perfect Wire Contact: Copper barrel decreases voltage drop and provides increased current flow, preventing wiring failures and reducing equipment downtime. Your wire will never slip out of the connector for the thick barrel ensuring strong crimp.

IP67 Waterproof: This wire connector kit is IP67 waterproof, great for applications such as marine, boats, trailers, cars and other demanding electrical applications. Install wire connectors heat shrink and then apply a heat source, then it will create a water & moisture proof connection.

Easy & Fast Process: All-in-one step solder and seal process. Fit for confined and narrow spaces. It can be bent after connection and no need for crimp tools and soldering machine, just control the temperature via a heat gun.

Insulated Well: The Solder Seal Wire Connectors do not decrease in length, creating better insulation alongside with most reliable wire support and pressure relief.

Multi-Taking Pack: This electrical terminal kit includes 50pcs shrink connectors (4 Sizes), and 50pcs single wall tube, fitting your needs and helping you balance between quality and cost.

SPECIFICATIONS:

Brand: iMountek
Product Type: Solder Seal Wire Connectors
Color: Red, Blue, White, Yellow, Black
Gauge: AWG
Material: PE, Alloy Tin Ring
Waterproof Rating: IP67
Shrinkage Ratio 2:1
Minimum Shrinking Temperature: 176°F / 80°C
Minimum Melting Temperature for Solder: 280°F / 138°C
Item Weight: 73.5g/ 0.16lbs
Item Dimension:
Red Shrink Connectors: Diameter: 2.7 mm, Cable Cross-section: 0.5-1.0mm²(A.W.G:22-18)
Blue Shrink Connectors: Diameter: 4.5mm, Cable Cross-section: 1.5-2.5mm²(A.W.G:16-14)
White Shrink Connectors: Diameter: 1.7 mm, Cable Cross-section: 0.25-0.35 mm² (A.W.G:26-24)
Yellow Shrink Connectors: Diameter: 6.0 mm, Cable Cross-section: 4.0-6.0 mm² (A.W.G:12-10)
Black Single Wall Tube: Black (A.W.G:13) 3.2 mm²
Package Size: 13.8 x 6.8 x 2.8cm/ 5.43 x 2.68 x 1.1in
Package Weight: 75g/ 0.17lbs


iMounTEK 100 Piece Heat Shrink Butt Connector, Solder Seal Wire Sleeve Connector Outlets & Accessories

  • Dimensions: 1.1 inches (H) x 2.68 inches (W) x 5.43 inches (L)
  • Weight: 0.17 pounds

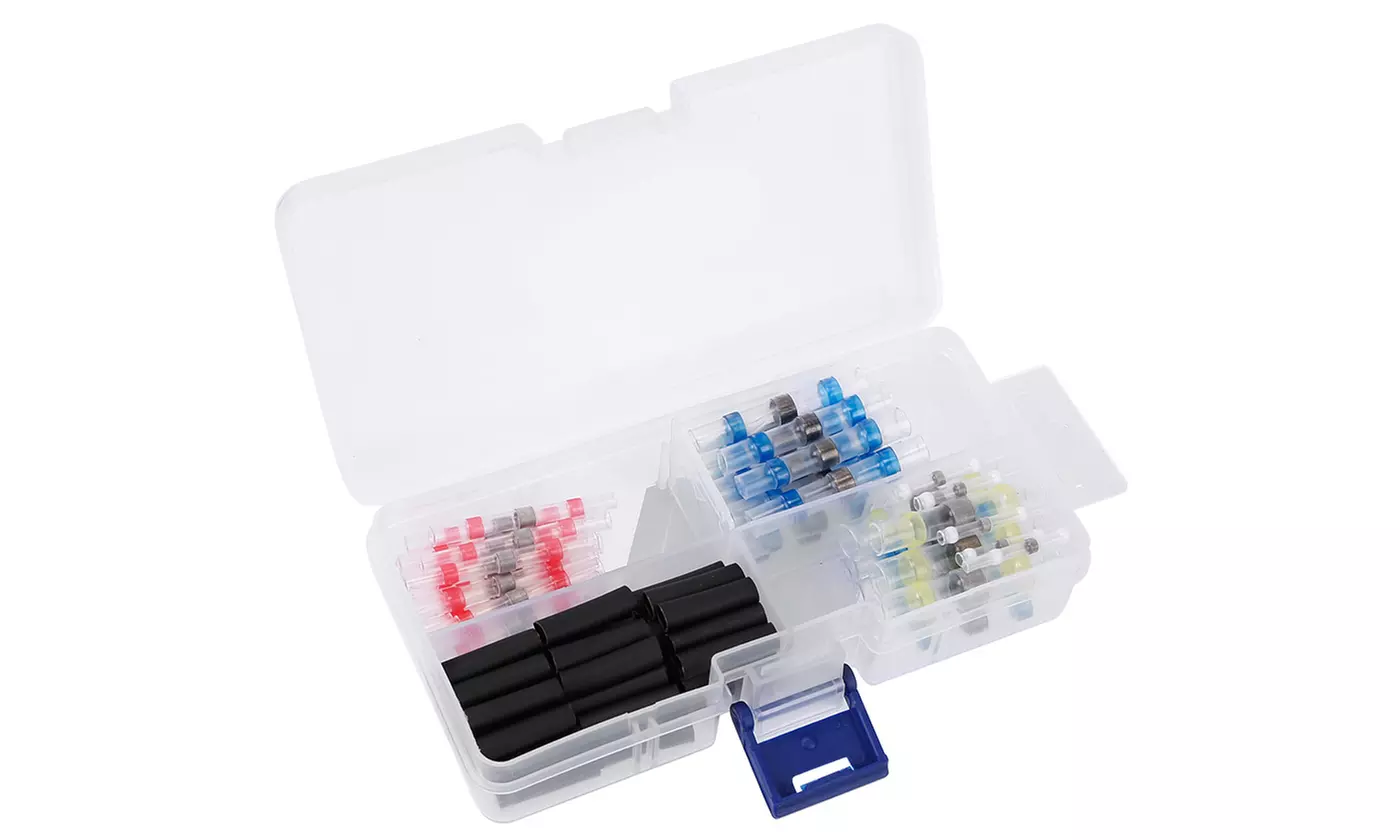

  • Included in the box: 20 x Red Shrink Connectors 20 x Blue Shrink Connectors 5 x White Shrink Connectors 5 x Yellow Shrink Connectors 50 x Black Single Wall Tube 1 x Box 1 x User Manual
  • Please contact customer support for warranty information
  • Made in China
