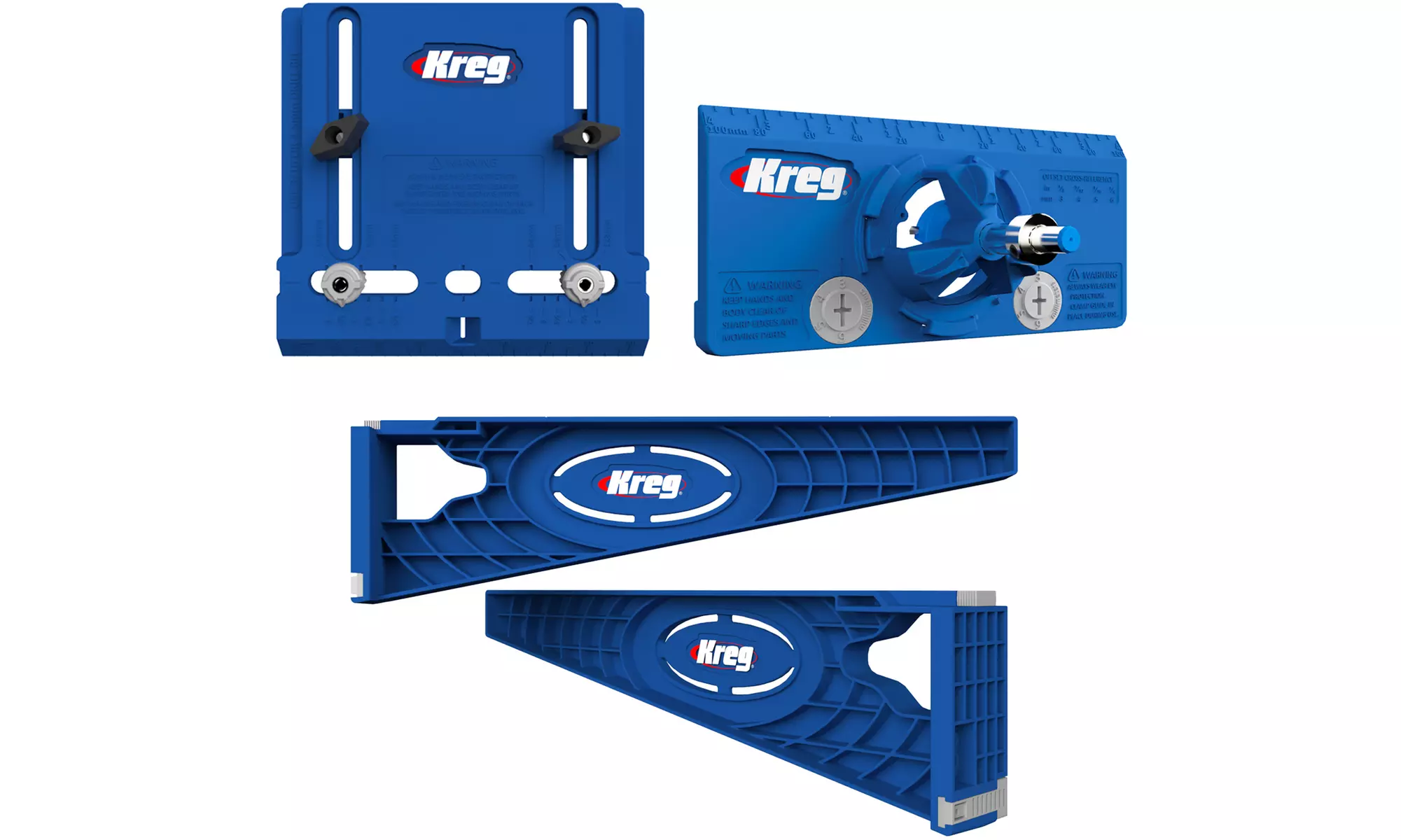

Kreg Drawer Slide Jig with Cabinet Hardware Jig and Concealed Hinge Jig

The Kreg Drawer Slide Jig takes the guesswork out of installing drawer slides, enabling DIY drawer slide installation. This easy-to-use jig holds slides in position as you drill mounting holes in the cabinet, and it supports drawer boxes while mounting slides to the drawer. Plus, the Jig works with ball-bearing, epoxy-coated, and undermount slides for perfect positioning every time. The Drawer Slide Jig simplifies drawer installation by aligning slides in the cabinet and on the drawer. Built-in tabs make the jig easy to align to support the slide inside the cabinet, and to support the drawers as you attach the slides to them. This Kreg drawer slide mounting tool is simple to use, and it ensures that every drawer fits right and operates smoothly.

Takes the Guesswork Out of the Process
Whether you're updating cabinets or you're building a project from scratch, mounting drawers is always a challenge. The slides have to be level, straight, and positioned properly, or the drawers won't operate well. The Drawer Slide Jig takes the guesswork out of mounting drawer slides by indexing with the cabinet frame (or side on frameless cabinets) for perfect alignment.

Smooth Positioning
The jig supports the drawer slide level and straight while you install it in the cabinet. Then, the jig clamps on so it protrudes from the cabinet to support the drawer while you drive screws into the drawer box. With this jig, you'll know that your slides are positioned correctly, so your drawers will operate smoothly.

Incudes Two Brackets
The Drawer Slide Jig consists of two brackets that clamp in place inside the cabinet - one on each cabinet side - and align with the cabinet face frame (or with designated marks on frameless cabinets) to support the drawer slide as you drill mounting holes. The brackets are also reversible to protrude from the cabinet, and then clamp in place perfectly aligned to support the drawer as you mount the slides to the drawer box, too. This slide tool works with almost all types of drawer slides, including ball-bearing, epoxy-coated, and undermount slides.

Easy to Use
Like other Kreg tools, this DIY drawer slide jig is designed to be intuitive for beginners to use, but robust enough for professionals. All you need are the slides you'll use, a clamp, and the Drawer Slide Jig, and you're set to install drawer slides just like the pros. Whether you're installing one drawer or dozens, the Drawer Slide Jig provides fast, consistent results.


Includes :

Kreg Drawer Slide Jig
2 x Brackets
4 x Upper/Lower Sliders (Installed)
Owner's Manual
Kreg Concealed Hinge Jig
Jig Base with Index Cams
Drill Guide
35mm Carbide-Tipped Drill Bit
Stop Collar with Hex Wrench
Owner's Manual
Kreg Cabinet Hardware Jig
Jig Base
Edge Guide
2 x Drill Guides with Knurled Nuts
2 x Non-Slip Pads
2 x T-Knobs and Bolts
Owner's Manual

• Accurate slide positioning with built-in indexing tabs; secure for holding slides in place as you work
• Repeatable results without measuring and marking
• Versatile for use in cabinets, cases, and more; strong, lightweight materials for easy handling
• Reversible to mount slides to cabinet and drawer box
• Kreg Drawer Slide Mounting Tool, Kreg Concealed Hinge Jig and Kreg Cabinet Hardware Jig
• Strong, lightweight materials for easy handling
• Secure for holding slides in place as you work

Kreg Drawer Slide Jig with Cabinet Hardware Jig and Concealed Hinge Jig Blue Accurate slide positioning with built-in indexing tabs Repeatable results without measuring and marking Versatile for use in cabinets, cases, and more

• Package Quantity: Mixed Item Sets
• Power Source: Manual
• Dimensions: 6.8 inches (H) x 8.5 inches (W) x 16.1 inches (L)
• Weight: 55.0 ounces

• Included in the box: see item description for more details
• Made in United States
