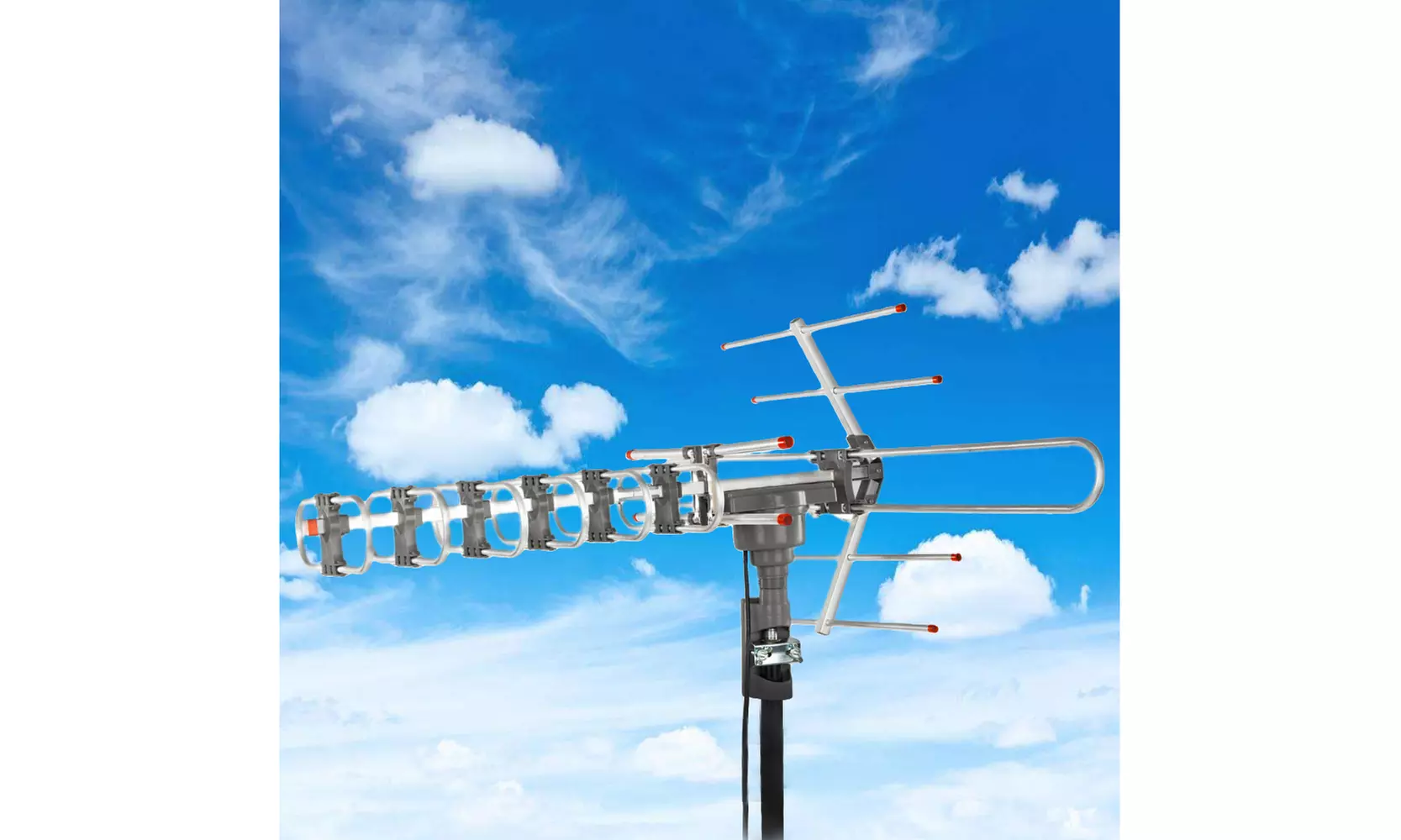

Leadzm TA-101G 360Rotation UV 45-860MHz 22-38dB Open Antenna Silver

Features:
1. Made of high quality plastic & aluminum material, durable and practical in daily use
2. With the light weight and compact design, it is easy for you to operate
3. It supports 360°rotation which will provide a good signal
4. With low power consumption and environment friendly design, it is worth to buy it
5. Rotation speed up to 2-4 rounds/min
6. Remote controlled distance is less than or equal to 5m



Specifications:
1. Frequency: 45-860 MHz
2. Gain: 22-38dB
3. Rotation: 360°
4. Channel: VHF1-12 UHF21-69
5. Impedance: 75 Ω
6. Power: 3W
7. Power Supply: AC110V
8. Rotation Speed: 2-4 rounds/min
9. Remote Controlled Distance: ≤5m
10. Standing Wave Radio: ≤1.5
11. Model: TA-101G
12. Color: Silver
13. Weight: 42.33oz / 1200g
14. Material: Plastic & Aluminum
15. Brand: Leadzm



Package Includes:
1 x Main Tube 15x15x350mm
1 x Deputy Tube 15x15x350mm
6 x Foldable Ring Director φ8 x 230mm
1 x VHF Vibrator φ10 x 850mm
1 x UHF Vibrator φ12 x 330mm
2 x Reflector Bracket 14x14x200mm
4 x Reflector φ8x400mm
1 x Antenna Main Part
1 x Square Tube Cap 15x15mm
2 x Square Tube Cap 14*14mm
8 x Round Pipe Cap φ8mm
4 x Round Pipe Cap φ12mm
1 x Reflector Tee Barcket
2 x Connection Clip 15*15mm
9 x Self-tapping Screws 3x8mm
6 x Self-tapping Screws 3x10mm
2 x Self-tapping Screws 3x18mm
4 x Hex Buts M4
4 x Screw M4x25mm

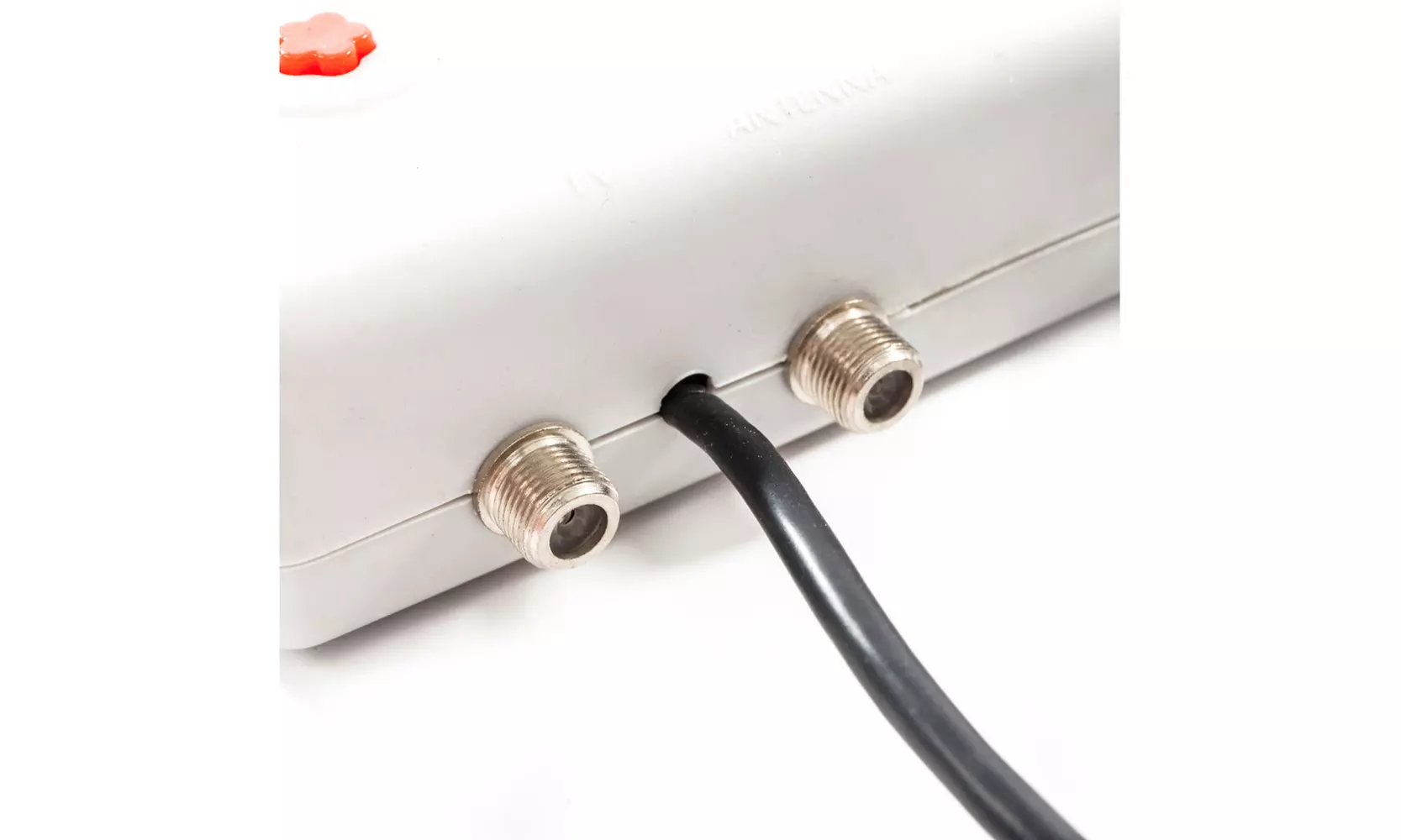

1 x Power Supply Box
1 x Remote Control
1 x Instructions

Leadzm TA-101G 360Rotation UV 45-860MHz 22-38dB Open Antenna Silver

• Dimensions: 25.0 inches (H) x 15.0 inches (W) x 20.0 inches (L)
• Weight: 43.0 ounces

• Made in China
