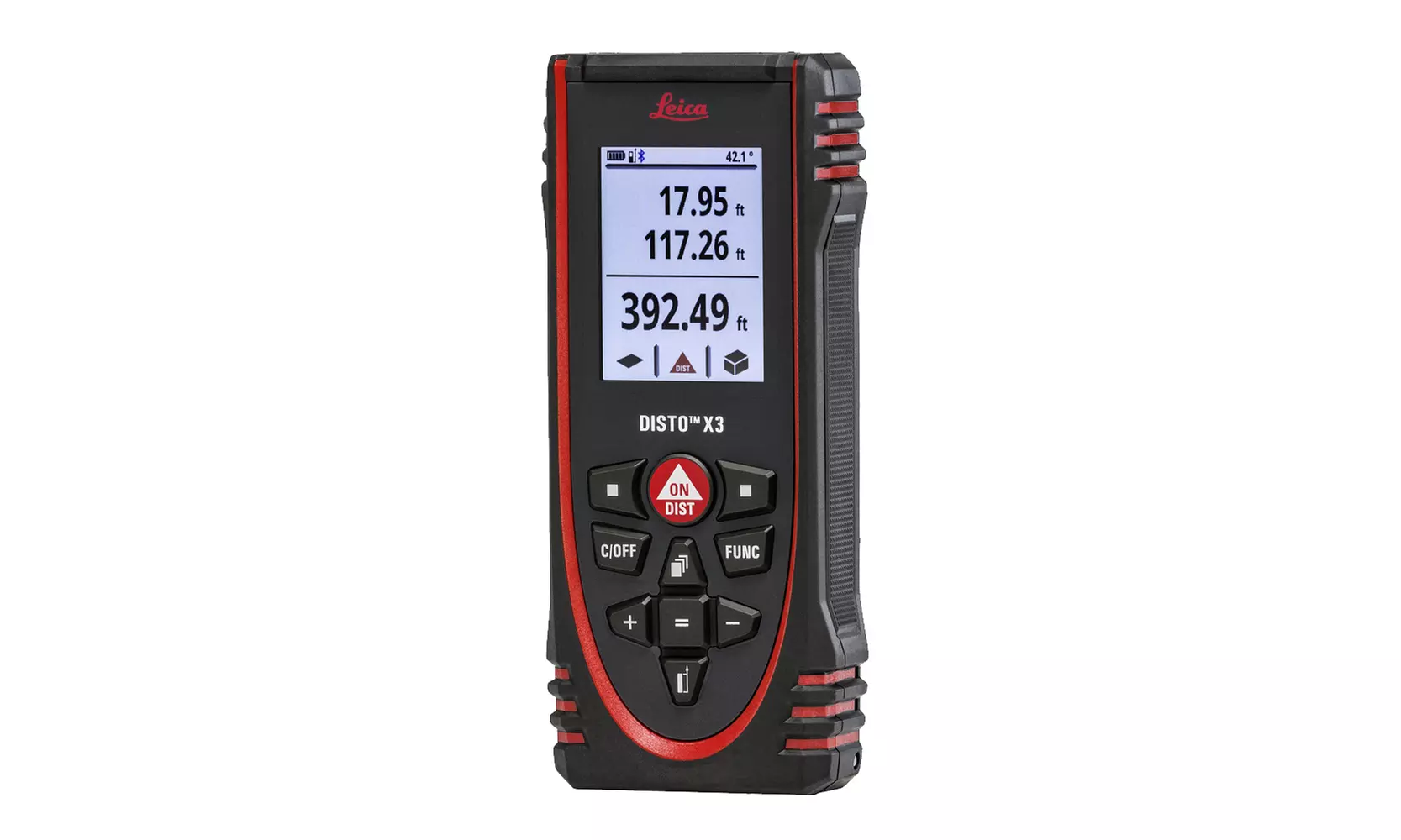

Leica Disto X3 Laser Distance Meter

The Leica Disto X3 Laser Distance Meter combines innovative distance measurement technologies with a site-proof design. These laser distance meters withstand drop tests from 2 meters and are dust- and water-protected to IP 65 standards. This makes them suitable for tough, everyday job site conditions. In combination with the Leica DST 360 adapter these laser distance meters allow for Point-to-Point measurements and all measured data is easily documented and visualized with the Leica Disto Plan app.

Tough

The casing and keypad are especially protected against dust and water to achieve the requirements of IP 65 protection. This means that the Lecia DISTO X3 can be cleaned under running water. Special bracing made from fibreglass-reinforced plastic strengthens the device inside and solid rubber components protect the sensitive measuring elements against drop-damage. All these features make the Disto X3 ideal for daily construction site work.

P2P Technology

The DST 360 adapter is a great addition for the Leica Disto X3 . It transforms the hand-held tool into a sturdy measurement station allowing for precise distance measurements between any two points. In combination with the Leica Disto Plan app, floorplans are easily created and can be further processed in CAD.

Leica Disto Plan

The Disto Plan app assists with the vital tasks of documenting and visualizing measurements. Fingers can be used to sketch a floorplan on a smartphone or tablet and corresponding measurements are easily assigned to each line of the plan. The app then automatically creates a scaled floor plan. Alternatively, the innovative Smart Room functionality in combination with a newly integrated sensor in the Leica DISTO X3 makes it possible to create accurate floor plans simply by taking clockwise or counter-clockwise measurements of a room. In combination with the DST 360 adapter or the DISTO S910, the app makes 3D measurement functionality available, allowing measurements to be captured in 2D or 3D. All measurements and floor plans can be exported as a CAD drawing or in a PDF format. The new app supports all Leica Disto devices with Bluetooth functionality.

• Maximum measurement range: 150 Feet
• X-Range power technology, class 2 laser
• Tilt sensor measuring range: 360 degrees
• I65 dust and splash water protected
• Bluetooth smart capability
• Up to 4000 measurements per set of batteries
• Rugged design - ideal for construction site

Leica Disto X3 Laser Distance Meter Maximum measurement range: 150 Feet X-Range power technology, class 2 laser Tilt sensor measuring range: 360 degrees Bluetooth smart capability

• Dimensions: 9.0 inches (H) x 9.0 inches (W) x 9.0 inches (L)
• Weight: 1.0 pounds

• Included in the box: Leica Disto X3 Laser Distance Meter Holster Hand Loop 2 x Batteries
• Made in United States of America
