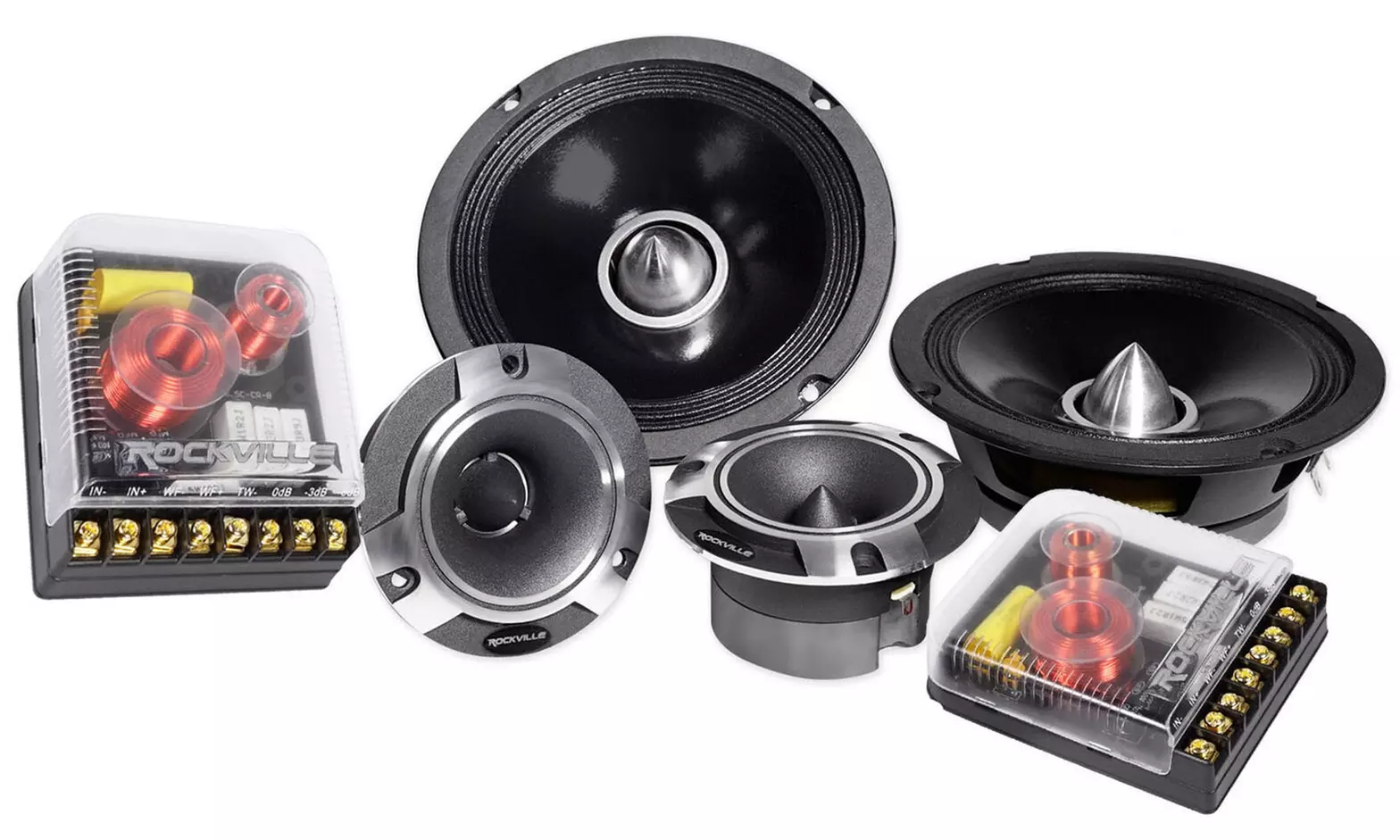

Pair Rockville X6.5C Competition 6.5" 1000W Component Speakers/Titanium Tweeters

What's In The Box:

(2) 6.5" Woofers
(2) Tweeters
(2) Top of the Line Audiophile Crossovers
Pre-Installed Mounting Screws
Mounting Screws and Hardware
Speaker Wire
Warranty Card
Owner's Manual
Features:

Pair Rockville X6.5C Competition 6.5" 1000 Watt Component Car Audio Speakers and Titanium Tweeters
(2) 6.5” Woofers for Mids and Bass
(2) 2” Aluminum Tweeters with Titanium Diaphragms
(2) Audiophile Crossovers (these are very expensive crossovers with a lot of copper coils in them for advanced sound filtering to give you the best sound quality)
Peak Power Rating: 1,000 Watts Per Pair/500 Watts Each
CEA Compliant RMS Rating: 250 Watts Per Pair/125 Watts Each
Paper Woofer Cone With Cloth Edge Gives Amazing Bass and Mids
True Aluminum Bullet to give the woofer amazing sound
Steel Stamped Basket
Oversized 1.5” ASV Voice Coil
14 oz. High Quality Ferrite Magnet
Cutout Diameter: 5.78” inches
Impedance: 4 Ohms
Tweeter Size: 3.86’' x 1.97” inches
Cutout Diameter of Tweeter: 2.80”inches
Audiophile 2-Way Crossover with 12db/Octave Roll-Off
Crossover Has Tweeter Attenuation Adjustment of -3db, -6db
Frequency Response: 40Hz – 20,000 Hz
Sound Pressure Level: 90dB @ 1w/1m
Fs: 110 Hz
Re: 3.6 Ohm
Qes: 1.024
Qts: 0.865
Qms: 5.579
Titanium Diaphragm Tweeter with 1” Kapton Voice Coils - the most premium voice coils on the market
This item uses CCAW voice coil windings which is the most expensive and best material for voice coil winding
Pre-installed mounting screws included
Owner's Manual​

Features of Included Crossovers:

2-Way Passive Crossover Network
One Pair of 4-Ohm Audiophile Grade Crossovers
Gold Plated Screw Terminals
Hingtat 100V Capacitor Modules (Best in Class)
High Quality CCAW Coil Windings (Best in Class)
High Grade Polymer Capacitors (Best in Class)
Woofer Frequency: 20 Hz - 3.5 kHz
Tweeter Frequency: 3.5 kHz - 20 kHz
12dB Per Octave Slope (4 Ohms)
Poly-Glass Styling to See Internal Components
Air Cooled Spools
Input, Tweeter Output, Mid-Bass Woofer Output
0dB, -3db, -6dB Selectable Tweeter Attenuation
Crossover Point: 2,800 Hz
4 Holes for Mounting
Crossover Dimensions: 5" x 4.25" inches

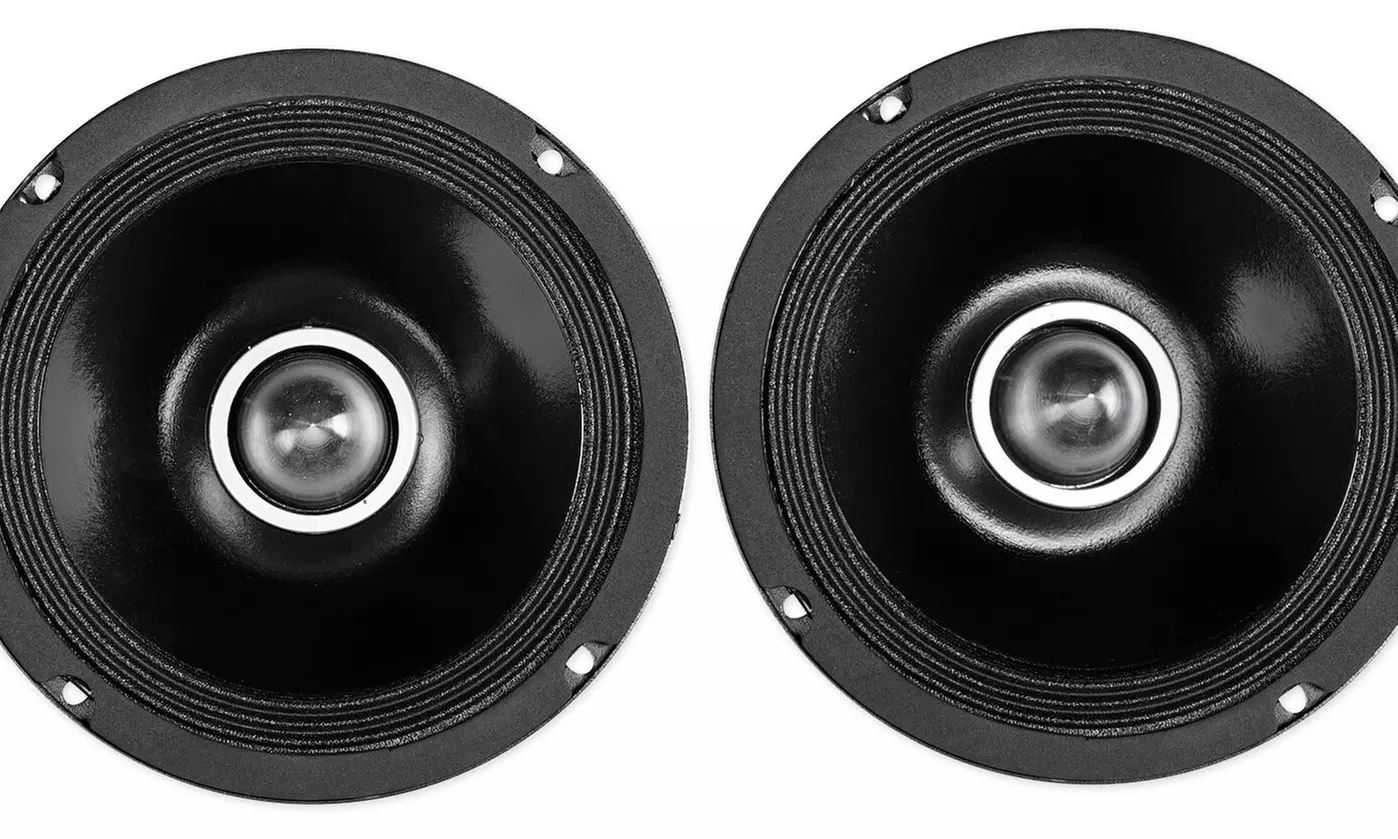

Features of Mid/Woofer:

6.5 Inch Mid/Bass Speakers Aluminum Bullet
Design: Open-Basket Mid-Bass
Sensitivity: 90dB
Frequency Response: 110Hz-10KHz
Impedance: 4 Ohms
Reinforced Black Pulp Cone
Linear Progressive Polyester-Cotton Composite Spider
Aluminum Bullet Phase Plug High SPL Design
High Tinsel Expanded Steel Basket
Cloth surrounds reproduces very clean sound
Zinc-Plated T-Yoke/Washers
Super Slim Design Facilitates Door Installations
1.5 Inch High Temperature KSV Voice Coil
14oz. Magnet
Shallow Mounting Depth
Top-Mount Depth: 2.09" inches
Cutout Diameter: 5.78" inches
Overall Diameter: 6.5” inches
Mounting Hole Diameter: 8 holes- 0.196" x 0.256" inches
TS Parameters of Mid/Woofer:

Fs: 110 Hz
Re: 3.6 Ohm
Qes: 1.024
Qts: 0.865
Qms: 5.579
Vas: 4.117L
Cms: 150.194
Bl: 5.134
MMS: 8.442g
XMAX: 2MM
Features of Tweeter:

2” Titanium Compression Horn Tweeter
1” High Temperature Die Cast Kapton Voice Coil
Extremely loud and clear highs with an amazing frequency response that can even play some mids
Ferro Fluid Enhanced Voice Coil Cooling
Shallow Mounting Depth
10oz. Magnet
Includes Mounting Hardware
Impedance: 4 Ohm
Cutout Diameter: 2.8” inches
Mounting Depth: 1.66” inches
Frequency Response: 2 kHz - 20 kHz
Sensitivity: 96dB @ 1w / 1m
TS Parameters of Tweeter:

Fo: 2.041 kHz
Re: 3.6 Ohm
Qes: 11.995
Qts: 2.74
Qms: 3.551
Krm: 11.224u Ohm
Erm: 1.034
Kxm: 1.531mH
Exm: 0.592

Pair Rockville X6.5C Competition 6.5" 1000W Component Speakers/Titanium Tweeters 1

• Condition: New
• Dimensions: 5.0 inches (H) x 3.0 inches (W) x 4.0 inches (L)
• Weight: 1.0 ounces

• Made in China
