Digital Arm Monitor Blood Pressure Machine and OLED Fingertip Pulse Oximeter

50N Introduction

Pulse Oximeter is a portable equipment adopting advanced technology, it mainly checks SpO2 and PR value through the finger, which provides advanced, non-invasive and scientific means for quantitative measurement of oxygen saturation.

Pulse Oximeter is applicable for use in plateau area, community healthcare, oxygen bar, Fitness clubs, physical training room, family and medical institution, etc.

2.Features

1) Can measure SpO2 and Pulse Rate accurately

2) SpO2 and Pulse Rate display,Pulse Rate waveform and bar graph display

3) Battery voltage low indication

4) The display mode can be changed.

5) Screen brightness adjustable

3.Performance

SpO2 measurement range: 0%~100%

Accuracy: 70%~100%: ±2%

0%~69%: unspecified

PR measurement range: 30bpm~250bpm

Accuracy: ±2bpm or ±2%, whichever is greater.

Resolution:

SpO2: 1%

PR: 1bpm

Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%, whichever is greater.

Resistance to surrounding light: The deviation between the value measured in the condition

of man-made light or indoor natural light and that of darkroom is less than ±1%.

Working current: ≤30mA

Power supply: two “AAA” batteries

Safety classification: type BF applied part

4.Physical characteristic

Dimension: 57mm(L) × 34mm(W) × 31mm(H)
Introduction

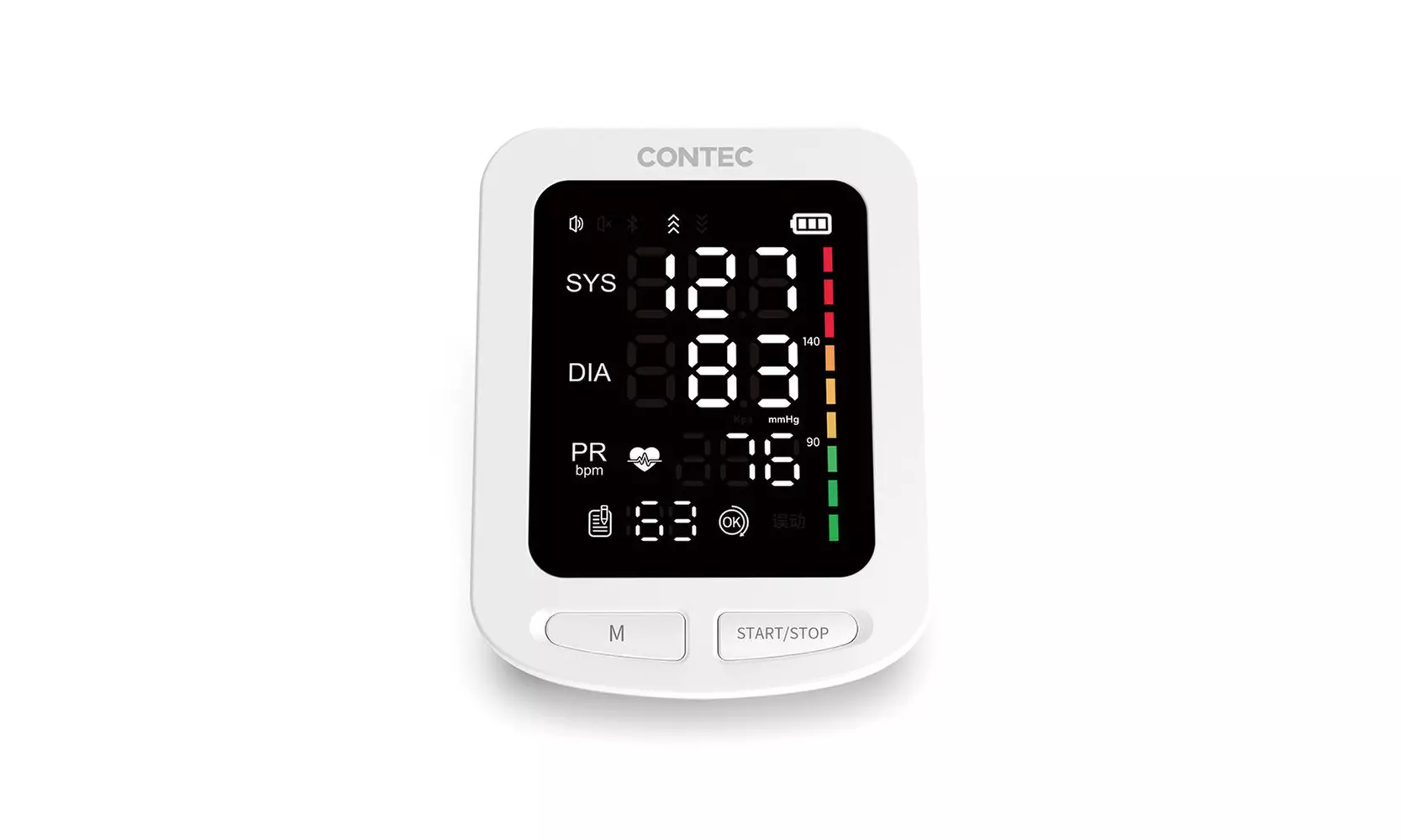

CONTEC08E is an LED screen Electronic Sphygmomanometer,simple interface and one-key measurement,it can measure NIBP accurately,NIBP records can be reviewed by the memory button and support voice broad casting(optional). The device is widely used in family,clinic and physical-examination center for routine test.


08E Features

1.Small volume,one-key measurement,easy to operate,big font in displaying,simple and easy to understand the displayed contents.

2.Support voice broadcasting(optional).

3.Start measuring manually,record each measurement data,and store up to 199 groups of data.

4.LED color screen.Automatic power off when there is no operation for a long time,achieves saving power.

5.High pressure prompt.

6.Low battery and error information indication.

7.Optional units:mmHg and kPa



Performance
Measurement method:Oscillometry

Measurement mode:upper-arm type

Measurement range:0kPa(0mmHg)~ 39.6kPa(297mmHg)

Resolution:0.133kPa(l mmHg)

Accuracy:±0.4kPa(±3 mmHg)

PR measurement range:40bpm~240bpm

Inflation:automatic inflation by force pump

Deflation:automatic multistep deflation

Display:LED large color screen

Power:Four"AA"batteries/5V Power adapter

Safety character:Class II Type BF



Physical characteristic

Dimension:130mm(L)×110mm(W)×80mm(H)

Operation environment：

Temperature:+5°C~+40°C

Relative humidity:15%-85%

Atmospheric pressure :700hPa~1060hPa

Storage environment:

Temperature:-20°C~+55°C

Relative humidity:≤95%

Atmospheric pressure:700hPa~1060hP


Accessories

Cuff

User manual

Digital Arm Monitor Blood Pressure Machine and OLED Fingertip Pulse Oximeter

• Dimensions: 10.0 inches (H) x 10.0 inches (W) x 10.0 inches (L)
• Weight: 10.0 pounds

• Warranty: 1 years parts-and-labor warranty provided by Contec Medical Systems Usa Inc.
• Made in China
