Veterinary pulse oximeter Handheld SPO2 Pr monitor Vet Tongue Probe CMS60D VET

Instructions

Principle of the CMS60D-Vet Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,The Veterinary Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through animal's tongue or ear and so on.The product is suitable for being used in family,pet hospital and etc. (It is recommended to use the device when the animal is still.)

Major Features

Small in volume、light in weight and convenient in carrying

Operation of the product is simple, low power consumption

Operation menu for the function setting

SpO2 value display

Pulse rate value display, bar graph display

Pulse waveform display

Screen brightness can be changed

Pulse rate sound indication

With review function

With clock function

With measured data overruns limits and low-voltage alarm function

Battery capacity indication

Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function

With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers

Real-time data can be transmitted to computers

Connected with an external oximeter probe

Main performance

Display Mode: 1.8" Color OLED display

Screen Resolution: 160*128

SpO2 Measuring Range: 0%~100%(the resolution is 1%)

Accuracy: 70%~100%: ±2%, Below 70% unspecified.

PR Measuring Range: 30bpm~250bpm(the resolution is 1bpm)

Accuracy: ±2bpm or ±2% (select larger)

Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).

Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

Power Consumption：less than 100mA

Voltage: DC 2.6V~3.6V

Power Supply: Dry battery(2AA)

Battery working hour: The theoretical number is 44 hours.

Safety Type:Interior Battery, BF Type

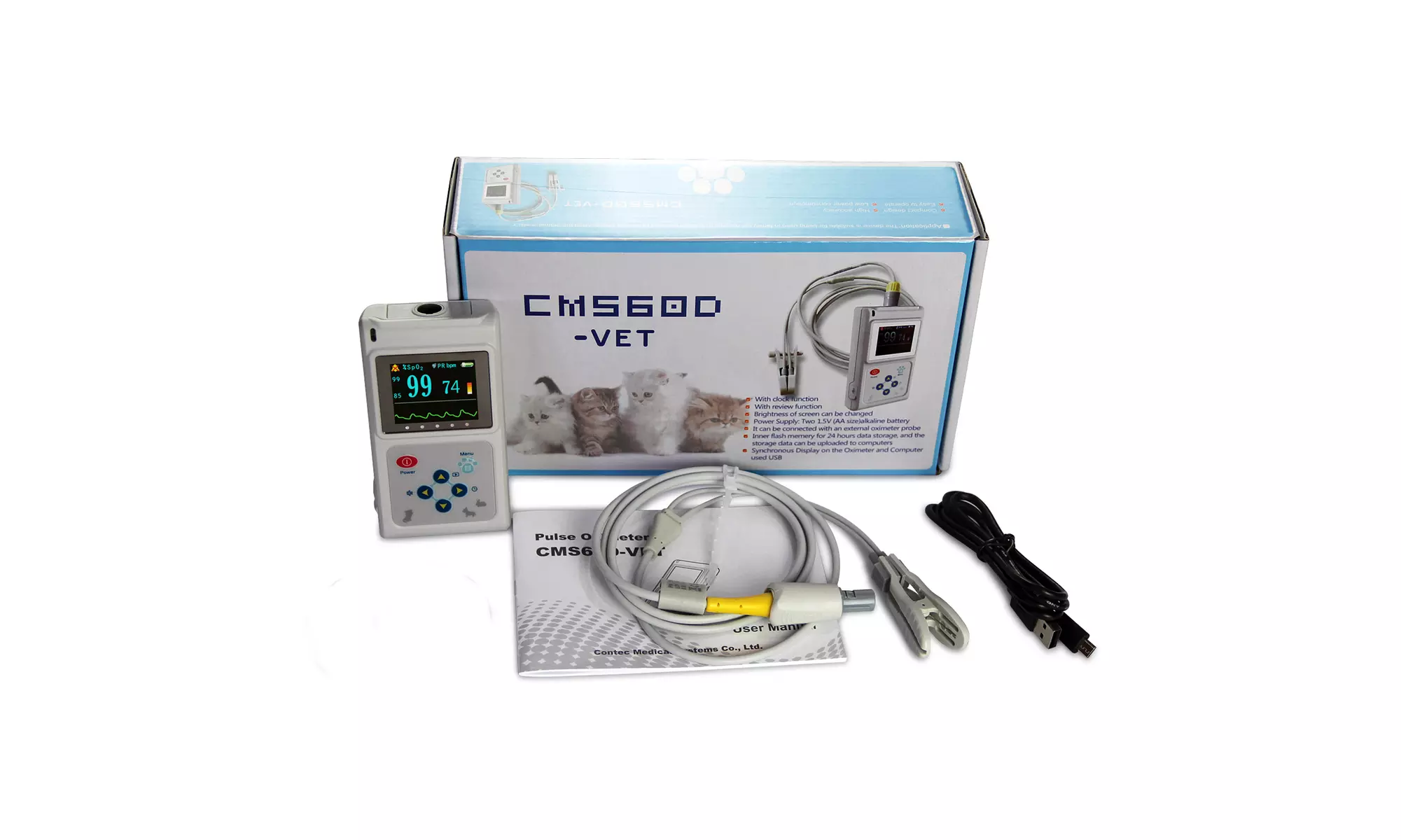

Accessories

Sell in standard

A user manual

A data line

PC software

An oximeter probe for animal

Physical Identity

Dimension:110(L) × 60(W) × 23(H) mm

Weight:About 120g (with Dry battery(2AA))

Certification

CE, FDA
pc software
Download address http://download.contecmed.com/

comIndex code:check on the package,any problem please contact me
Download

steps:
l.Enter the download address into browser address bar.
2 Enter the index code then click "Download" buttonto download the software.

Veterinary pulse oximeter Handheld SPO2 Pr monitor Vet Tongue Probe CMS60D VET

• Dimensions: 23.0 millimeters (H) x 60.0 millimeters (W) x 110.0 millimeters (L)
• Weight: 120.0 grams

• Made in China
