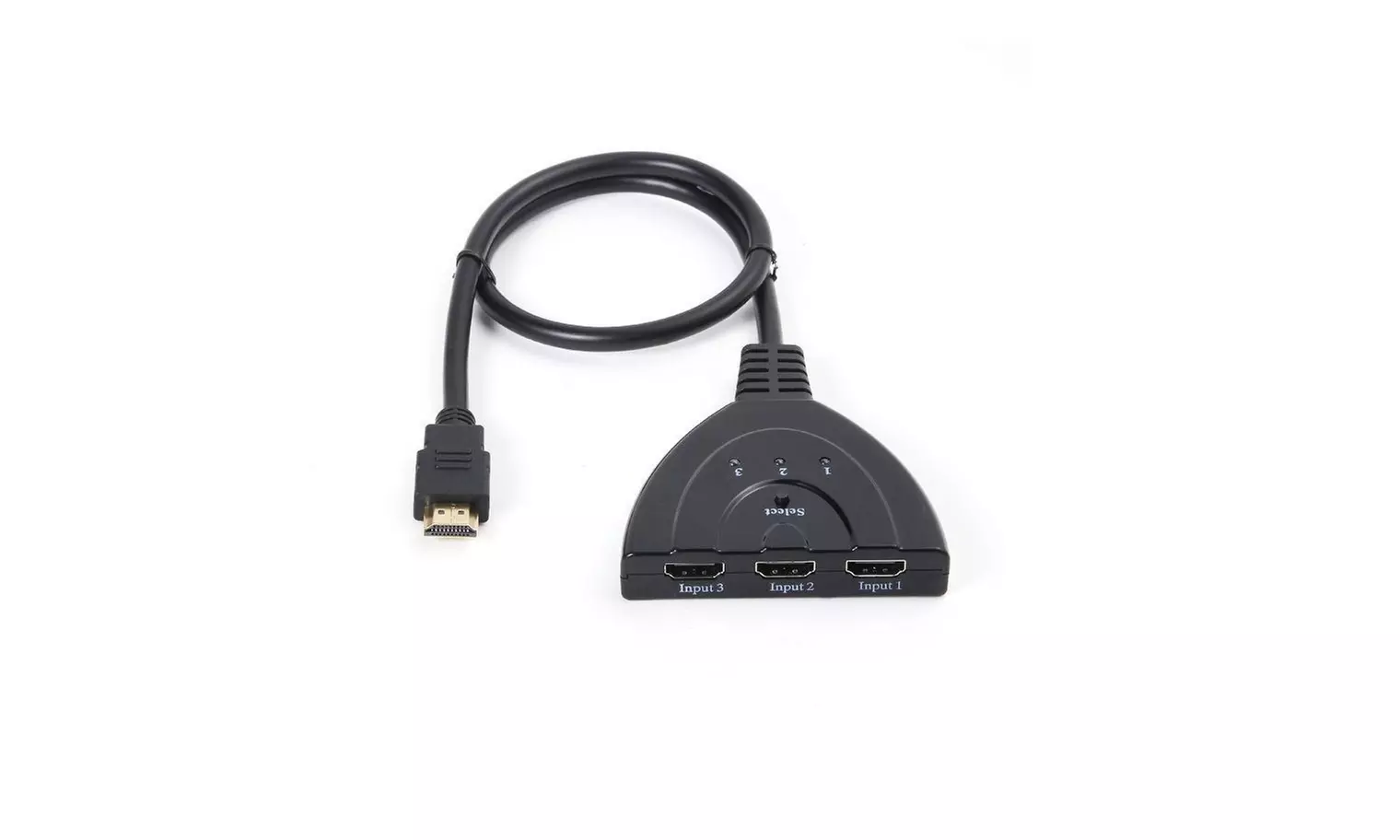

An ideal solution for a lack of HDMI inputs on your TV or monitor. This simple to use switch allows three additional devices to be attached to a single HDMI port. The switch is automatic, meaning that it will instantly change to the device you want to use as soon as you switch it on. It also has an override switch allowing manual switching if required. A 55cm fly lead attached allows for flexible positioning depending on your wiring arrangement. No additional power is required, as this is supplied from the devices you connect to it, simply plug in and it works, no extra adaptor required. It reduces cost but also save your time.
Support HDMI 1.4b
Supports Highest Video Resolution 1080P
Support 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
Support 12bit per channel (36bit all channel) deep color.
Support uncompressed audio such as LPCM.
Support compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD.
HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from Selected source to display units.
Manual switching between three sources to one display.
All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox 360 (Can not work with PS4)
Output sends high definition audio/video signals to a high definition display.
Input : 3 ports
Output : 1 port
(Notice: DOES NOT SUPPORT: SKY+ HD, VIRGIN BOX, DVD Players.)
Input DDC Signal: 5 volts p-p(TTL)
Maximum Signal Link: 1920x1080p
Output Video: HDMI 1.4b
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 2.5Gbps/250MHz
Operating Temperature: 0°C to + 70°C
Operating Humidity: 5% to 90%RH(no condensation)
Storage Temperature: -10°C to +80°C
External Power Supply: No power needed
Power consumption(Max): 5W
Converter Unit: FCC,CE,UL
Technical Parameters :
It does not fit Xbox One, PS4, Apple TV and Sky box and Blue ray player
Support High Speed HDMI specification (Version 1.3b)
Support 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth
Support 1080p Full HD and 12-bit deep colour, retaining the crispy clear images.
HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three
With a 28AWG HDMI cable (pigtail) this 3 port Smart HDMI switch /Hub converter not only reduces cost but also save time for consumers.
It allows you to connect it to the HD TV or projector without a HDMI male to male cable, receive signals from up to 3 HD sources to ONE display, such as PS3 / Xbox 360 (slim) / Freesat HD / Virgin + DVD / HD Camcorder / HTPC / Laptop etc. You can switch easily between three HDMI sources such as DVD players, game consoles, and more.
When one device is turned off, the pigtail switcher will automatically select the next device, or you can manually select with the button.
