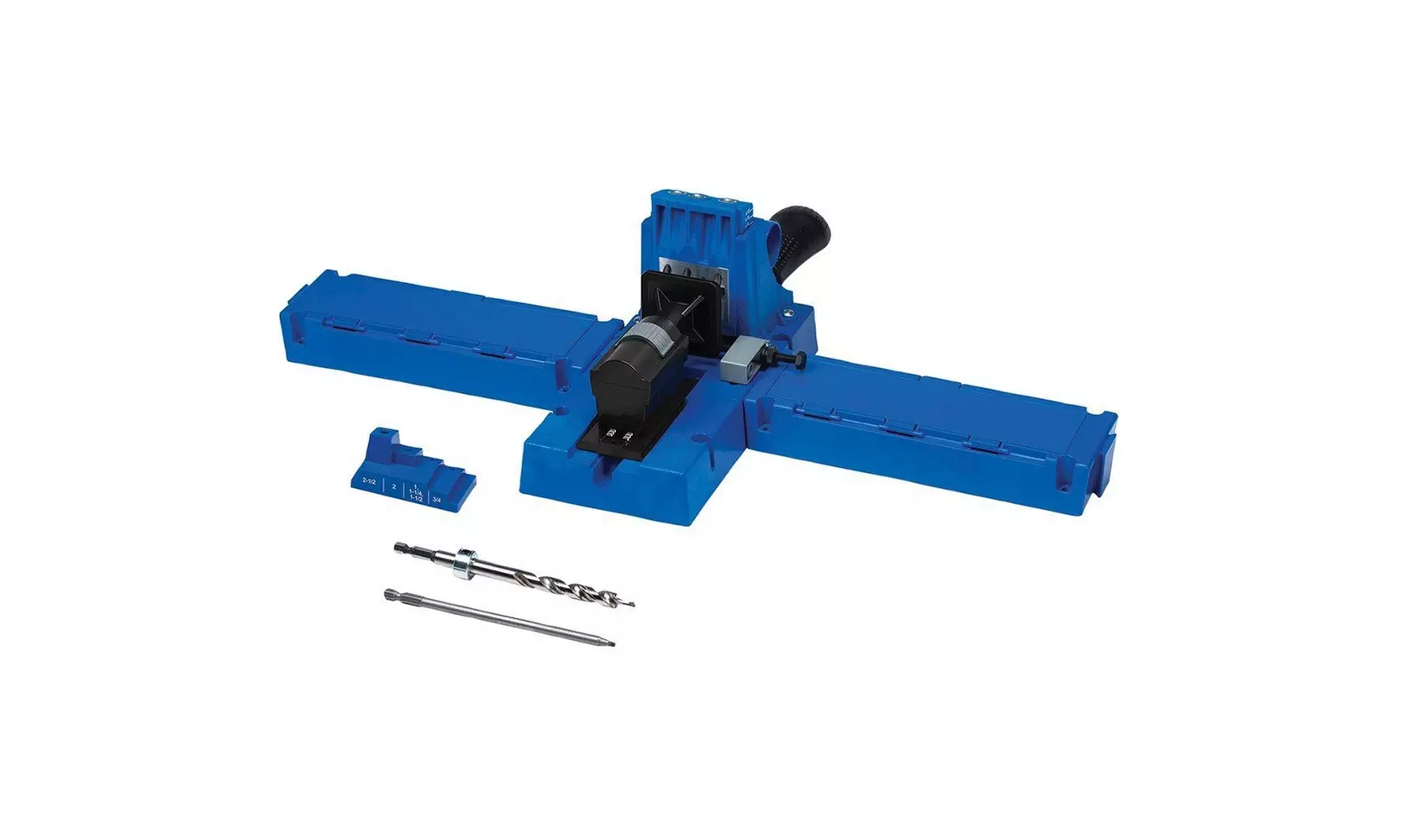

Kreg K5 Pocket-Hole Jig

The Kreg K5 Pocket-Hole Jig has many advanced features that make building with wood easy. If you are looking for the best pocket hole jig to add to your collection of Kreg tools, look no further than the Kreg K5.

Advanced Features for Building with Wood

The Kreg Jig K5 incorporates the best Kreg Jig features of previous pocket hole jigs, with innovative upgrades you've never seen. That starts with a clamping mechanism that you can quickly adjust, without tools or adjusting nuts, to match your workpiece thickness. Just slide the clamp into place, click the large front-mounted clamp handle, and your jig is set to hold your workpiece tight every time.

You'll find large support wings to hold your workpiece steady - plus, they open up to provide handy storage for bits and accessories. Add in a batch of other great features, like a swiveling dust collection port, spring-loaded stop for the drill guide block, and, of course, the ability to remove the guide block for portable use, and you have - quite simply - the most advanced Kreg Jig yet.

Fast, Simple Setup

When you're ready to get started building, the Kreg K5 makes it simple. Just select your screw based on the thickness of your wood, set the stop collar using the drill bit setup block, pull the spring-loaded pin to adjust the drill guide block, and then set the workpiece clamp.

Easy Thickness Adjustment

The Kreg Jig offers Kreg's simplest workpiece clamping system ever. The ratcheting clamp simply slides into place against your workpiece. Then, you lift the handle until you hear and feel two clicks, and that's it. Now your clamp is set until you change to a different material thickness.

Support with Built-In Storage

Two large support wings can be attached quickly and easily to both sides of the K5 base. This way, long workpieces get solid support and won't tip. Plus, there's a large storage compartment under the lid in each wing where you can keep your Kreg drill bits, screws, and accessories close at hand, but out of the way.

Swiveling Dust Collection Port

The Kreg Jig K5 comes with a removable dust port that swivels from side to side so that you can position it exactly where you want it, and then attach it to a standard vacuum house. This keeps your work area free of chips and debris, makes drilling easier, and prolongs drill bit life by reducing heat.

3 Project Plans Included

Get started building with these step-by-step, downloadable project plans. You get three great plans, each with two design variations:

Classic Coffee Table: Build your own coffee table with a solid wood top and legs with tapered ends.
Coffee Table with Storage: Drawer offers enclosed storage space and a solid wood shelf underneath.
Modular Media Center: The perfect place for your home theater system.
Glass-Door Media Center: Glass-door panels give you a high-end look without overly-complicated construction.
Garage Organizer: Offers a lot of storage in a small space.
Entryway Organizer: Create a great-looking, organized entryway.

• Quick-release pin holds drill block in place and can't get lost
• Stop-Collar Setting Block makes drill bit setup easy
• Adjustable piece stop mounts on either side for repeat drilling
• Swiveling dust collection port accepts standard vacuum hoses
• Storage Wings provide built-in storage for bits and accessories
• Ratcheting clamp mechanism adjusts without tools
• Front-mounted clamp handle makes clamping easy

Kreg K5 Pocket-Hole Jig 2 drawer slider Blue 1/2, 5/8, 3/4, 7/8, 1, 1 1/8, 1 1/4, 1 3/8, and 1 1/2 inch

• Hand Tools Size: 1/2inch
• Power Source: drawer slider
• Certifications: Energy Star
• Dimensions: 5.0 inches (H) x 8.0 inches (W) x 10.0 inches (L)
• Weight: 4.5 pounds

• Included in the box: Kreg K5 Pocket-Hole Jig Kreg Jig K5 base with ratcheting front-side clamp Extension wings Swiveling dust-collection port Drill guide block Spacer block Workpiece stop Drill bit setup block Stepped drill bit 6-inch (152mm) driver bit
• Made in Andorra
